BV 3000mm Ceramic Lagging Conveyor Pulley Q245 Multi Labyrinth Seal

Product Categories
HEBEI QINYI CONVEYING EQUIPMENT CO.,LTD
Contact Now

BV 3000mm Ceramic Lagging Conveyor Pulley Q245 Multi Labyrinth Seal

Brand Name : QINYI

Model Number : Belt Conveyor Bend Pulley

Certification : CE / ISO / FDA / SGS / TUV

Place of Origin : china , cangzhou

MOQ : 5 ton

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 5000 Ton/Tons per Month

Delivery Time : 10~15 days

Packaging Details : Steel-strcuture pallet or wooden case

Product name : Belt Conveyor Bend Pulley

Shapes : flat roll, cambered or crowned roller pulley, anilox roll.

Sample : available,Please contact our representatives for more details

Standard : DIN,ASME B16.28,DL/T 515 SY/T 5257 ASME B16.49

Specification : Plug,socket,Union,Bushing

Seal : Multi Labyrinth Seal

Length : Less Than 3000mm

Packing : Plastic Bag+Carton (Pallet with large quantity),pallet or as the customers' requirements

Model NO. : standard or customized

Contact Now

BV 3000mm Ceramic Lagging Conveyor Pulley Q245 Multi Labyrinth Seal

Belt Conveyor Idler Pulley , Driving Pulley , Bend Pulley

conveyor pully is manufactured as per customer requirement, with main design unfer national standard, quality inspection focusing on shaft core, welded joint, rubber material and hardness, dynamic balance and so on for longer product lifetime.

Our products are widely used in thermal power generation, harbours, cement plants, metallurgy and as well as the light duty conveying devices for industries.

Bend pulley is used for changing the conveyor belt direction. The prime purpose is to maintains proper tension in the belt & accommodating changes in the length of the conveyor belt(Take up). It is located near the tail end part of the pulley.

Product Description

1, This series Drive rollers are welded by steel plate, and using rolling bearings.
2, The surface of drive plulley includes three type: smooth, plastic and cast plastic. Usually the smooth pulley can be used on condition that the power is not big, and the the ambient temperature is low. The plastic surface pulley should be used when it is easy to slip.
The quality of cast plastic pulley is better.Becasue the external surface layer is wear-resistant. The packed plastic drum can achieve the same performance. It's easy to replace rubber surface , easy to maintain.And it's also be considerde affordable and durable.
3, Please refer to the following table for each bandwidth of the roller.
4, The diameter selection of entire core plastic conveyor belt drive pulley is same as the same intensity rubber conveyor belt.
conveyor pulley Description

Material: steel, nylon, SS, ceramic, PVC, UHMWPE, HDPE
Bearing Model: 6204,6205,6305,6306,6307,6308
Bearing Brand: HRB, LYC, ZWZ,SKF, NSK,C&U
Working Life: ≥30000 hours
Diameter: D38mm to D200mm
Belt Width: B450mm to B2200mm
Application: recycling industry
power industry
parcel transport industry
petro industry
coal mining industry
cement concrete industry
machining industry
Standard CEMA/JIS/DIN/Australia
Special: can be customized according to customer or design for customer
Supply Ability: 1000pcs per day
Certificate: ISO9001:2008, BV, SGS,TUV

Material
NR / SBR
Tensile Strength. N/mm2
17.5
Specific Gravity
1.2 +/- 0.5
Adhesive strength between ceramic tile and rubber. Mpa
> 6.6
Hardness, Shore A
60 +/- 5
Akron abrasion
0.193 cm3
Elongation. % min.
450
Size of Ceramic tiles
20*20*7mm

Key Features of flat belt idler pulley
(1).Steady running, reliable quality and reduce maintenance;
(2).Less movement longitudinally, rotating smoothly, extends the life span;
(3).Various bearing housing and sealing structure are available for the customers choice;
(4).Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;
(5).Manufacturing by steel pipe specially for of high precision roller, ensuring the strong load,
low shaking and less noise.

Components of flat belt idler pulley
(1)High quality raw material: Q235 / Q 245 / Mn steel plate.
(2)Bearing: LYC, HRB, NTN, etc.
(3)Long service life (about 8 years).
(4)It can work in the dusty, wet, muddy or other harsh environments.
(5)Welding: Mixed gas TIG.
(6)Surface: painting or rubber coated.
(7) Lubrication: Lithium grease, rust inhibitor.

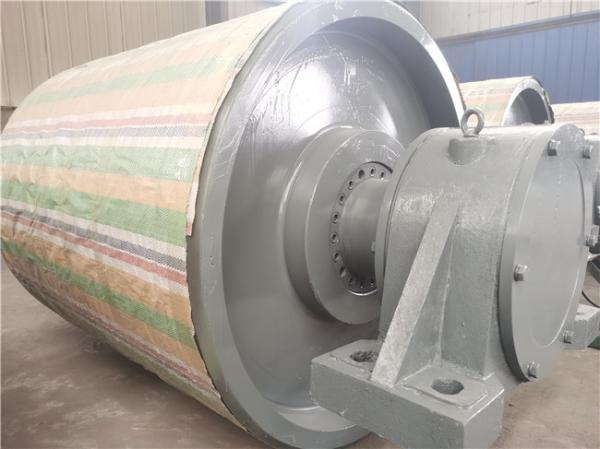

BV 3000mm Ceramic Lagging Conveyor Pulley Q245 Multi Labyrinth Seal

BV 3000mm Ceramic Lagging Conveyor Pulley Q245 Multi Labyrinth Seal
